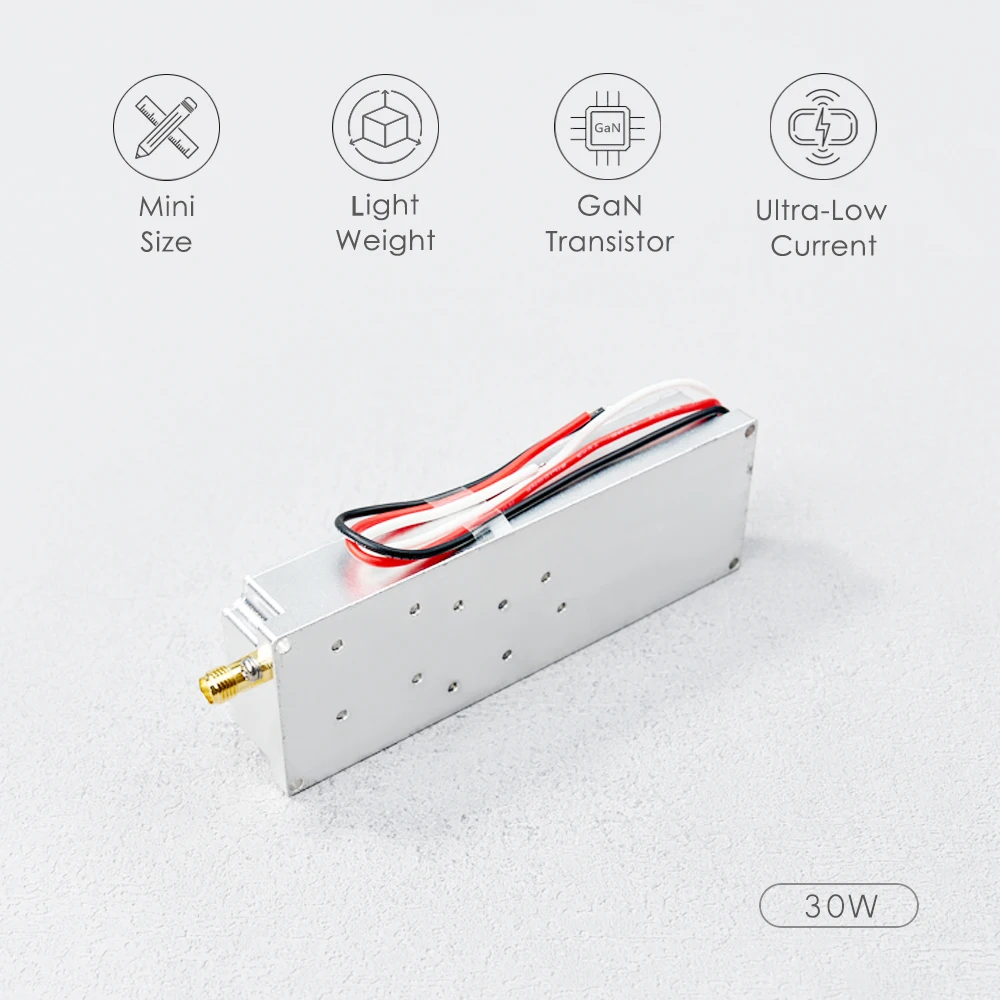

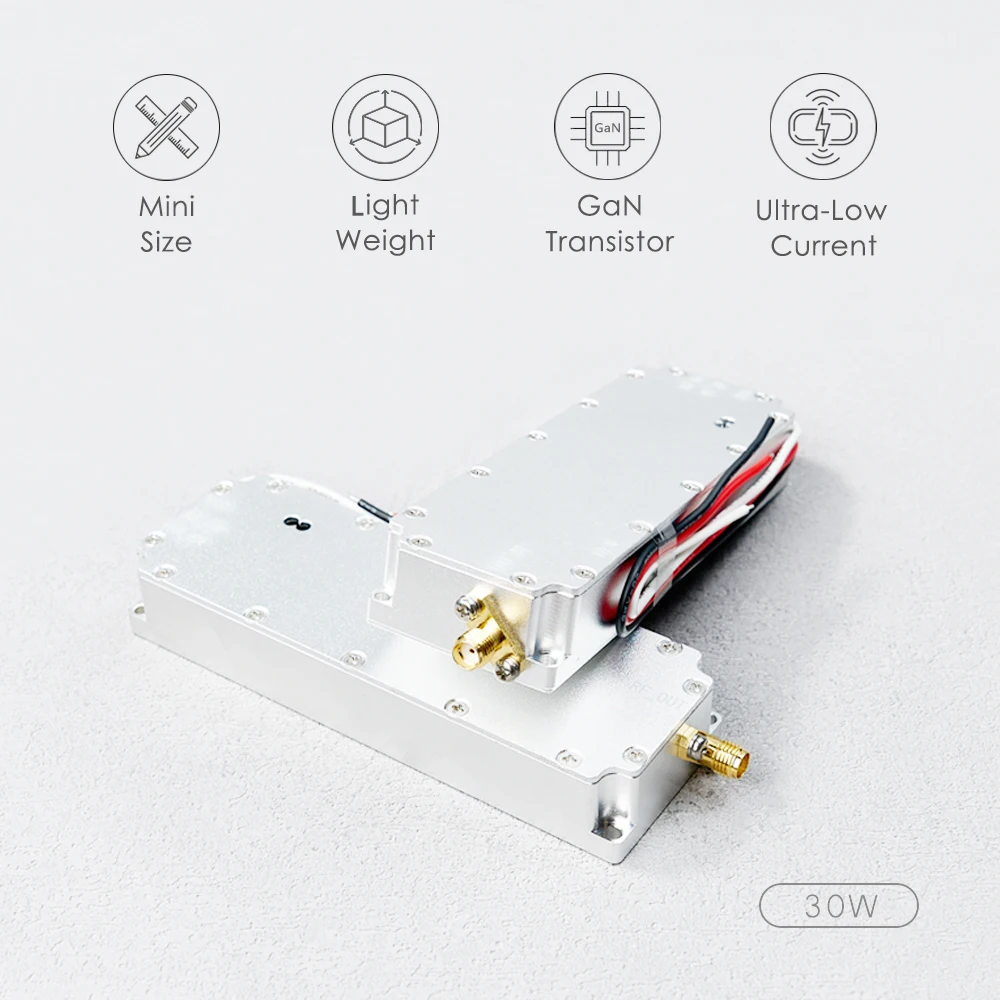

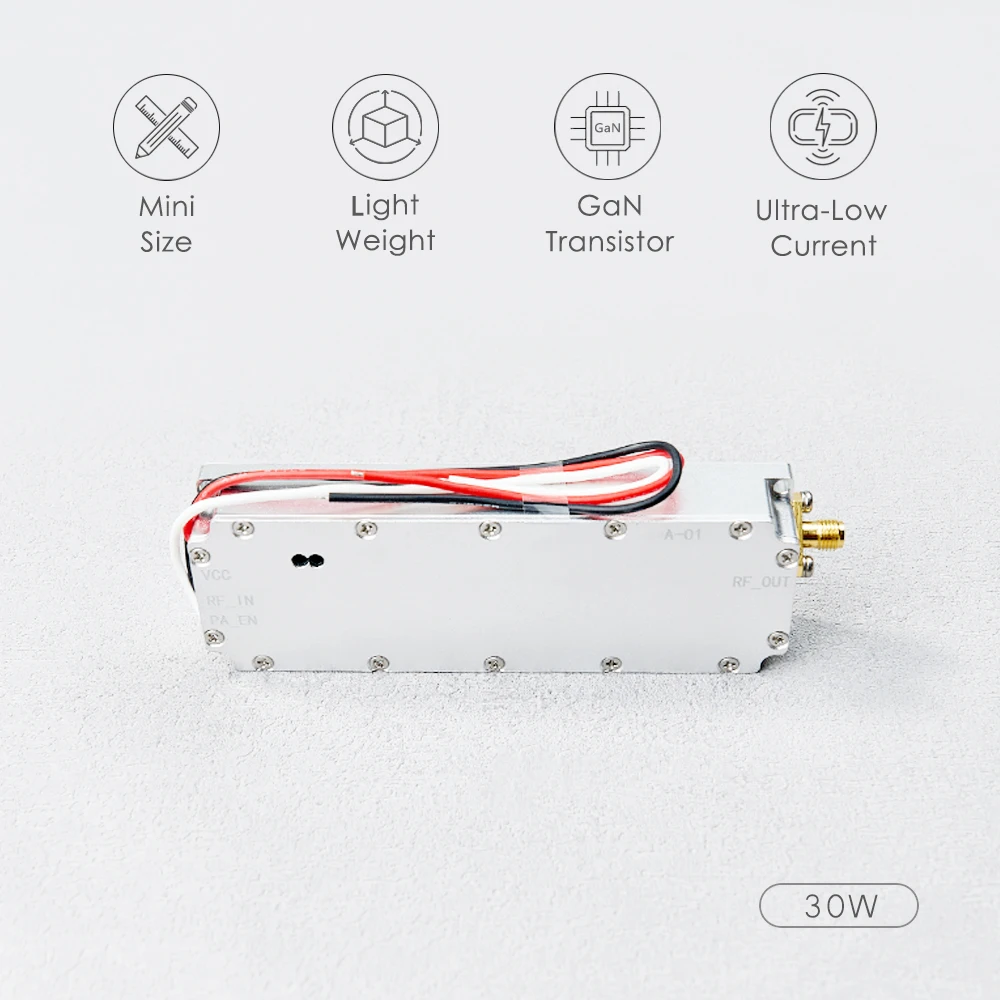

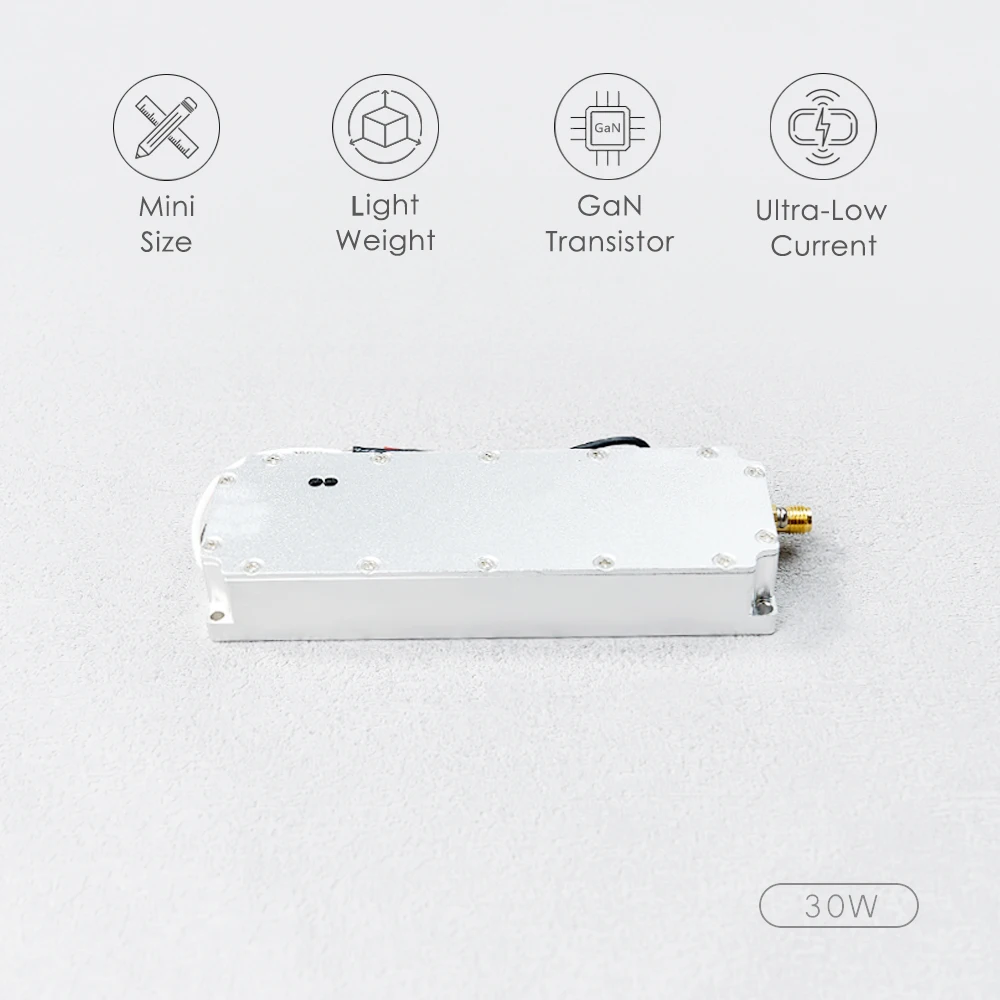

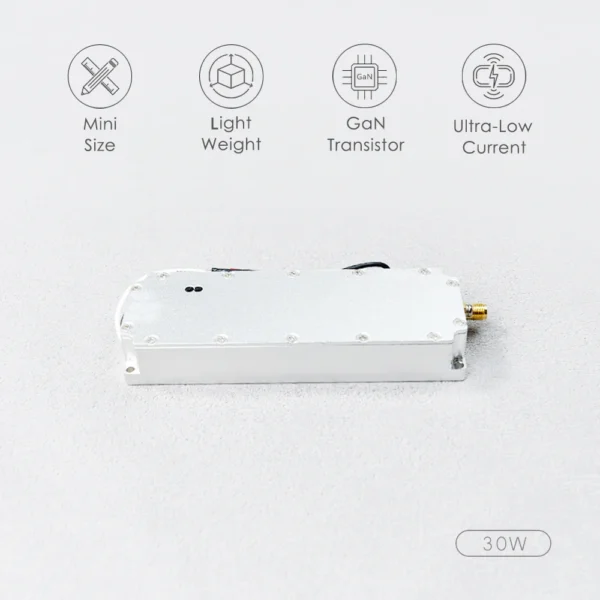

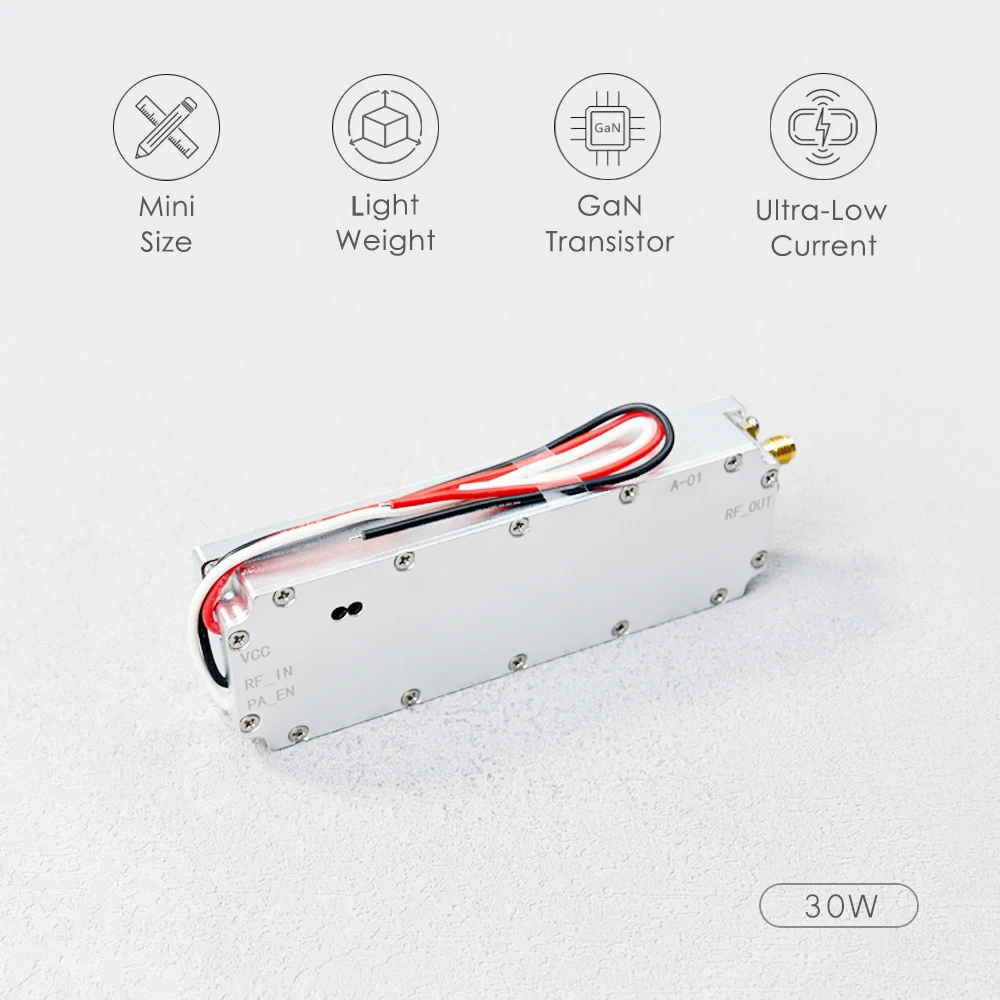

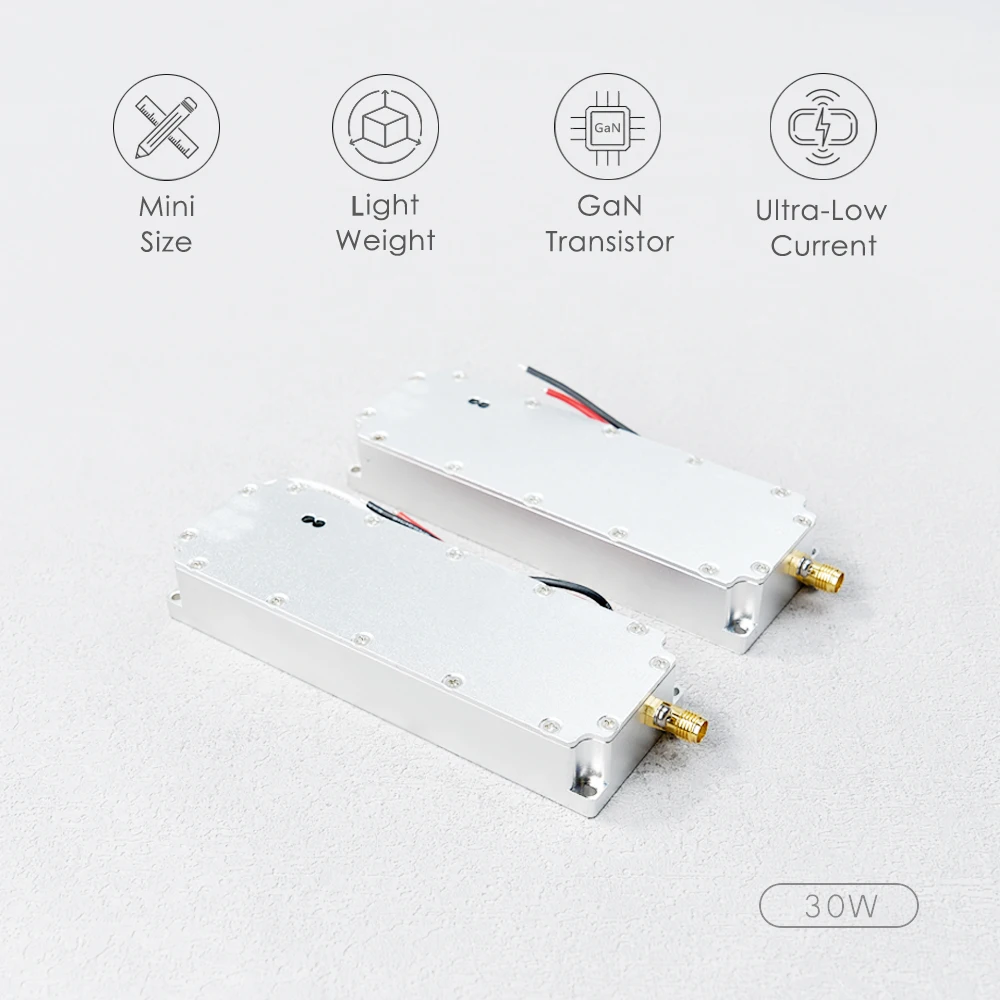

30W 100-200MHz 200-300MHz 300-400MHz 410-490MHz 700-1050 1.5G 2.4G 5.8G RF Power Amplifier Module GaN VCO Source Circulator Module

Description

Specifications:

• Output Power: 30 Watts

• Supported Frequency Bands:

  • 100–200 MHz

  • 200–300 MHz

  • 300–400 MHz

  • 410–490 MHz

  • 700–1050 MHz

  • 1.5 GHz

  • 2.4 GHz

  • 5.8 GHz

• Technology: GaN (Gallium Nitride) for high efficiency and power density

• Integrated Modules:

  • VCO (Voltage Controlled Oscillator) Source

  • Circulator for signal routing and protection

• Impedance: Typically 50 ohms

• Operating Voltage: Manufacturer-specific (not listed)

• Form: Compact RF module for integration into systems

Key Features:

• 30W high power output across wideband RF ranges

• GaN-based design for high efficiency, low heat, and compact size

• Covers UHF, L, S, and ISM bands (including 2.4G and 5.8G)

• Integrated VCO source simplifies system design

• Circulator protects sensitive components from reflected power

• Suitable for broadband and multi-band applications
