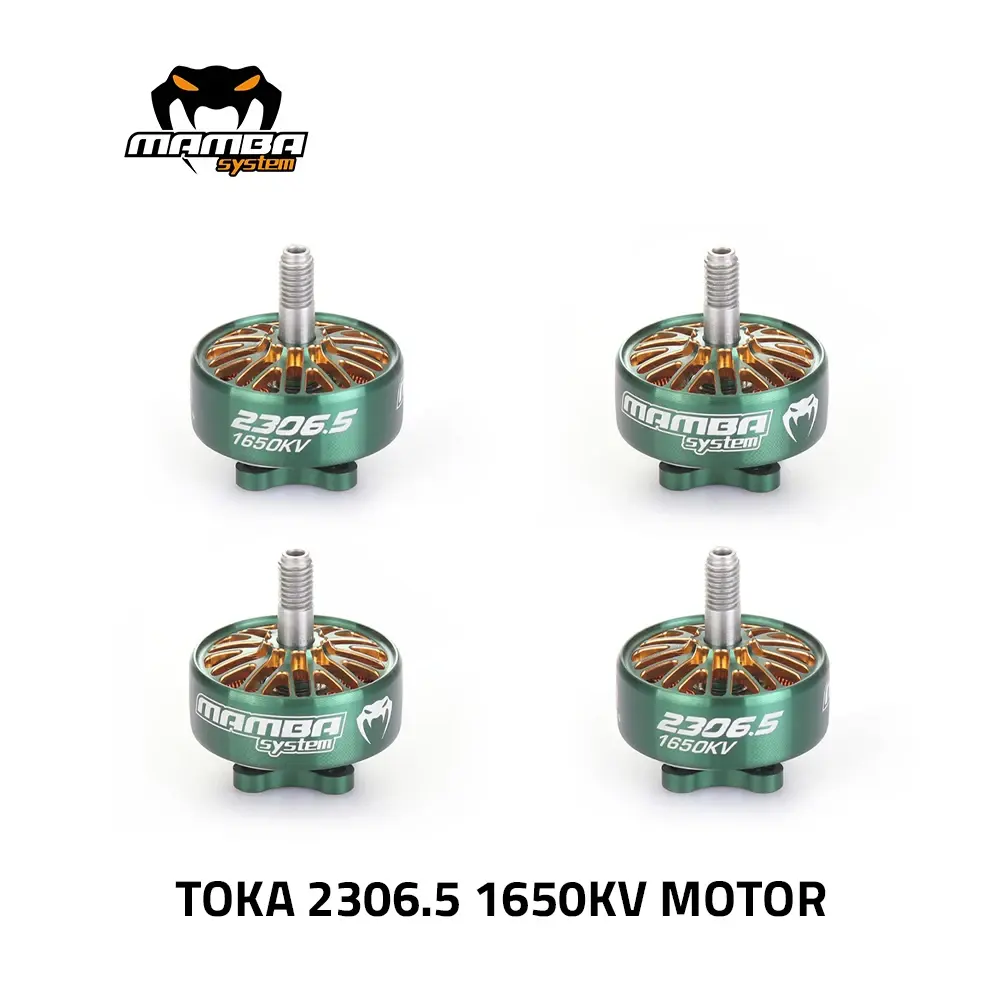

MAMBA TOKA 2306.5 1650KV/1770KV/2770KV Brushless Motor for Roma F5/F6 3-4inch Propeller Quadcopter FPV Drone Rc

Description

Key Specifications:

• Size:
  Φ29.8 × 33.2 mm

• Shaft Diameter:
  5 mm

• Mounting Hole Distance:
  16 × 16 mm, M3 thread

• Recommended Prop Size:
  5 to 6 inches (depends on KV option)

• Bearing Size:
  681ZZ 9×4×4 mm

• Shaft Diameter:
  4 mm

• Wire Spec:
  20AWG × 190 mm

• Stator Configuration:
  12N14P

• Stator Diameter:
  23 mm

• Stator Height:
  6.5 mm

• Magnet Wire Temp Rating:
  240°C

• Magnets:
  N52H

KV Options and Performance:

• 1650KV:

  • Voltage: Suitable for 4S to 6S batteries (16.8V to 25.2V)

  • Max Power: Approx. 970.05W

  • Peak Current: 40.5A

  • Idle Current: 0.7A

• 1770KV:

  • Voltage: Suitable for 4S to 6S batteries (16.8V to 25.2V)

  • Max Power: Approx. 938.97W

  • Peak Current: 39.12A

  • Idle Current: 1A

• 2770KV:

  • Voltage: Suitable for 3S to 4S batteries (12.6V to 16.8V)

  • Max Power: Approx. 847.10W

  • Peak Current: 52.62A

  • Idle Current: 2A

Best For:
The MAMBA TOKA 2306.5 brushless motor is ideal for FPV racing and freestyle drones using the Roma F5/F6 frames. It offers various KV options to meet different power requirements and flying styles.
