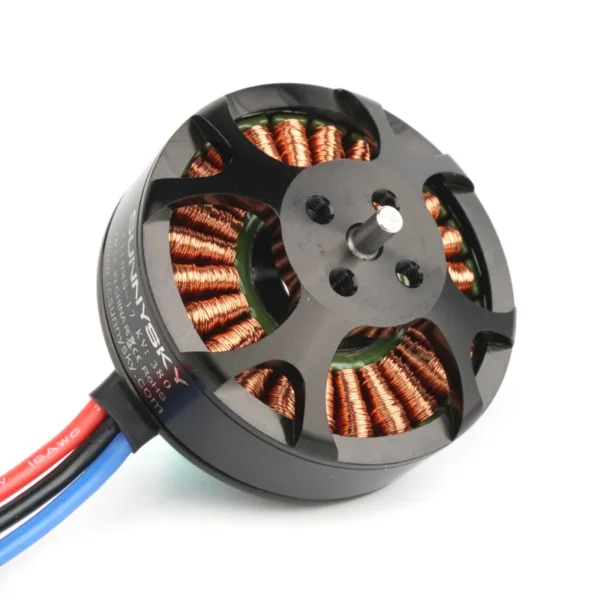

Sunnysky X4108S 480KV Outrunner Brushless Motor for Multi-rotor Aircraft Multi-axis Disc Motor

Description

Specifications

• Model: X4108S

• KV Rating: 480KV

• Motor Type: Outrunner

• Configuration: 12N14P

• Stator Size: 41 × 8mm

• Shaft Diameter: 5mm

• Mounting Hole Pattern: 25mm (M3 screws)

• Voltage: 6S–8S LiPo

• Recommended Propeller Size: 14″–16″

• Max Continuous Power: ~800W

• Weight: Approx. 185g

• Bearing: High-quality Japanese NSK bearings for smooth operation

Key Features

• High Torque: With a 480KV rating, this motor provides high torque, which is perfect for large multi-rotor drones carrying heavy payloads.

• Efficient Power Delivery: Offers a great balance between efficiency and power output, resulting in longer flight times and stable performance.

• Durable Construction: Built with high-quality materials, including NSK bearings, ensuring long-lasting, reliable performance.

• Large Propeller Compatibility: Works well with larger propellers (14″–16″), making it ideal for medium to large drone builds.

• Smooth Operation: Features a precision design for smooth, quiet operation with minimal vibrations, which is crucial for stable flight and camera equipment.

Recommended Use Cases

• Aerial Photography and Cinematography: Ideal for drones used in professional filmmaking or surveying, where stability and power are required.

• Heavy-Lift Drones: Perfect for drones used in applications like agricultural spraying, inspection, and other commercial tasks that require carrying heavy equipment.

• Industrial and Survey Drones: Can be used in drones that require long flight times and the ability to carry heavy sensors or cameras.

• DIY & Custom Drone Builds: Suitable for large, custom builds where extra power and durability are necessary.

Important Notes

• ESC Compatibility: Use an ESC rated for 60A or higher to handle the power requirements of this motor.

• Voltage and Prop Size: Ensure the use of the correct voltage (6S–8S LiPo) and propeller size (14″–16″) to achieve optimal performance without overloading the motor.

• Motor Cooling: Make sure there is proper airflow to prevent overheating during extended flight times.

• Propeller Balancing: Properly balance the propellers to reduce vibrations and improve the efficiency of the motor.

• Weight Considerations: Best suited for medium to large drone builds, as this motor is heavier than typical motors used in smaller UAVs.
